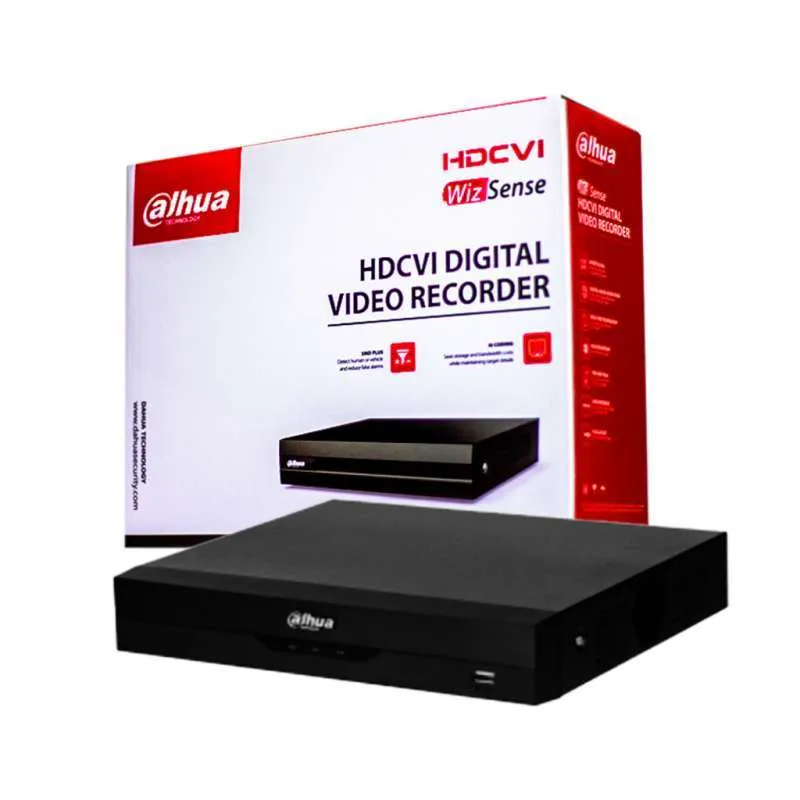

Dahua DH-XVR4A04 4 Channel

Dahua DH-XVR4A04 4 Channel 1080 HD DVR | Dahua 2mp 4 Channel Fll HD 1080 XVR/XVR

System Overview

• Dahua  as a technology leader, is always the first ever developed the shining new technology in the security industry ,and today we present Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. It is ideal for a wide range of civil applications such as retail store, home protection and so on. Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance.=

Functions DH-XVR4A04 4 Channel DVR

HDCVI/AHD/TVI/CVBS/IP Auto-detect

• The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

IPC Input Supported

• The XVR4A04 supports up to 2MP IPC input, and XVR4A08 suppports up to 5MP IPC input.

Coaxial Audio/Upgrade/Alarm

• The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Long Distance Transmission Dahua DH-XVR4A04 4 Channel DVR

• The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P.

Smart Search

• This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

Perfect Image Quality DH-XVR4A04 4 Channel DVR

• High performance chip provides perfect image quality with better color reproduction.

P2P

• Monitor at anytime and anywhere. Easily and conveniently mange the device.

Technical Specification

System

• Main Processor : Embedded Processor
• Operating System : Embedded LINUX

Video and Audio

• Analog Camera Input : 4/8 Channel, BNC
• HDCVI Camera : 1080P@25/30fps, 720P@25/30fps
• AHD Camera : 1080P@25/30, 720P@25/30fps
• TVI Camera : 1080P@25/30, 720P@25/30fps
• CVBS Camera : PAL/NTSC
• IP Camera Input : 4CH: 4+1, each channel up to 2MP, 8CH: 8+2, each channel up to 5MP
• Audio In/Out : 1/1, RCA
• Two-way Talk : Reuse audio in/out, RCA

Recording DH-XVR4A04 4 Channel DVR

• Video Compression : H.264
• Resolution : 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
• Record Rate : Main Stream: 4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/ QCIF(1~25/30fps), 8CH: the 1st channel 1080N/720P(1~25/30fps), others, 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/, QCIF(1~25/30fps), Sub steram:, 4CH: CIF/QCIF (1~15fps), 8CH: CIF/QCIF (1~7fps)
• Video Bit Rate : 32Kbps ~ 4096Kbps Per Channel
• Record Mode : Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval : 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
• Audio Compression : AAC(only for the 1st channel), G.711A, G.711U, PCM
• Audio Sample Rate : 8KHz, 16 bit Per Channel
• Audio Bit Rate : 64Kbps Per Channel

Display

• Interface : 1 HDMI ,1 VGA
• Resolution : 1920×1080, 1280×1024, 1280×720, 1024×768
• Multi-screen Display : When IP extension mode not enabled: 4CH: 1/4, 8CH: 1/4/8/9, When IP extension mode enabled: 4CH: 1/4/6, 8CH: 1/4/8/9/16
• OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

• Interface : 1 RJ-45 Port (100M)
• Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search, (Supports Dahua IP camera, DVR, NVS, etc.)
• Max. User Access : 128 users
• Smart Phone : iPhone, iPad, Android
• Interoperability : ONVIF 16.12, CGI Conformant

Video Detection and Alarm

• Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm input : N/A
• Relay Output : N/A

Playback and Backup

• Playback : 4CH: 1/4, 8CH: 1/4/9
• Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode : USB Device/Network

Storage

• Internal HDD : 1 SATA Port, up to 6TB capacity
• eSATA : N/A

Auxiliary Interface

• USB : 2 USB 2.0
• RS232 : N/A
• RS485 : N/A

Electrical

• Power Supply : DC12V/1.5A
• Power Consumption (Without HDD) : <10W

Construction

• Dimensions : Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
• Net Weight (without HDD) : 0.55kg (1.2lb)
• Gross Weight : 1kg (2.2lb)
• Installation : Desktop installation

Environmental

• Operating Conditions : -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
• Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

• Third-party Support : Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP, Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

• Certifications : FCC: Part 15 Subpart B, CE: CE-LVD: EN 60950-1/IEC 60950-1, CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, UL: UL 60950-1
